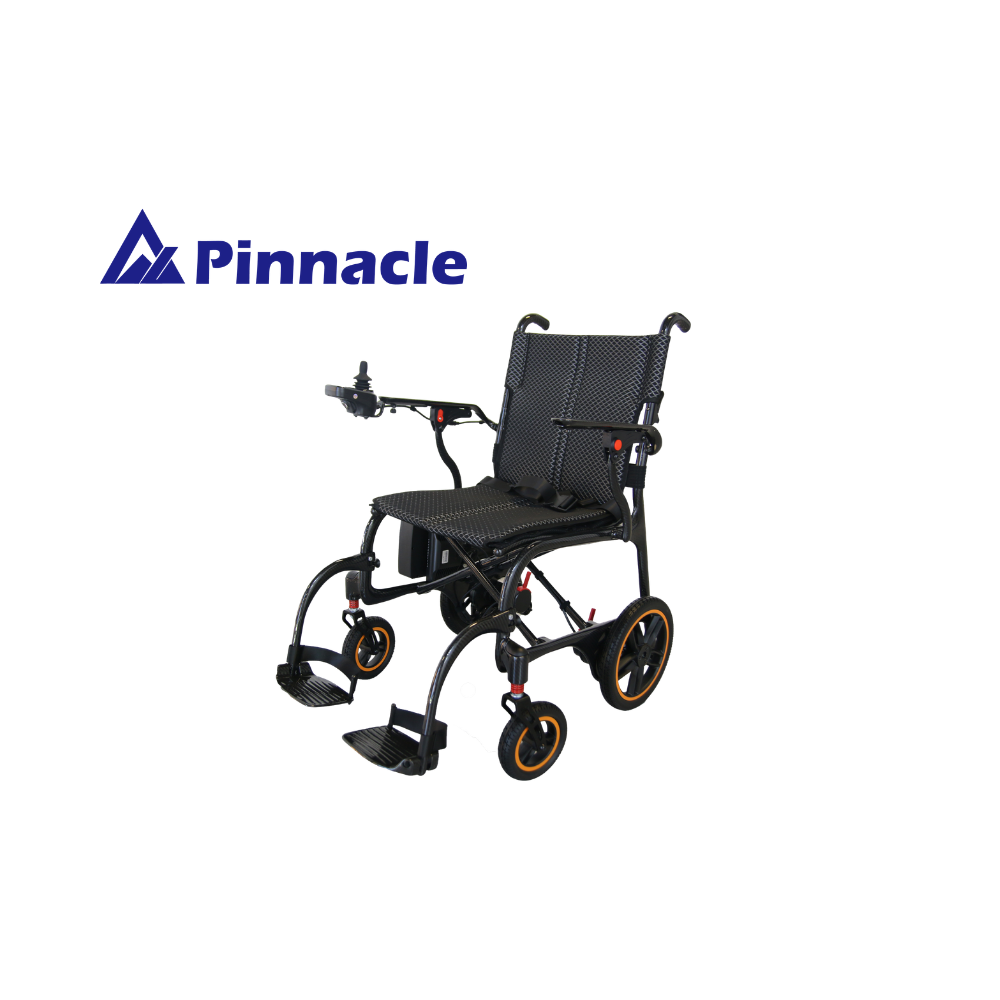

Pinnacle Featherlite Gen 3 Electric Wheelchair
Pinnacle Featherlite Gen 3 Electric Wheelchair
Regular price
$4,599.00
Sale price
$4,599.00
Regular price
$4,599.00
Couldn't load pickup availability
- Premium carbon fibre construction
- Ultra-light and travel-friendly
- Compact, foldable design
Features
- Full Carbon Fibre Frame
- 12 kg (without battery) / 13.5 kg (with battery) – One of the lightest power chairs in its class
- 136 kg Weight Capacity
- Compact Folding Design
- Flip Back Armrests & Foldable Backrest
- Detachable or Flip Up Footrest
- Removable Battery System
- Multiple Battery Options
- Wireless Remote & Rear Attendant Controller
- Optional Comfort Cushion Upgrade
Durability & Testing Standards
- 300,000 motor endurance test cycles under 136 kg load
- 300,000 frame fatigue test cycles under 136 kg load
- 220,000 backrest push test cycles
Specification
| Specification | Details |
|---|---|
| Frame Material | Carbon Fibre |
| Overall Dimensions (L × W × H) | 860 × 600 × 900 mm (±10 mm) |
| Folded Dimensions (L × W × H) | 630 × 260 × 700 mm (±10 mm) |
| Seat Size (W × D) | 430 × 400 mm (±10 mm) |
| Seat Height | 490 mm (±10 mm) |
| Backrest Height | 400 mm (±10 mm) |
| Armrest Height | 360 mm (±10 mm) |
| Footrest to Seat Distance | 420–445 mm (±10 mm) |
| Wheel Size | 6.5″ Front, 12″ Rear |
| Turning Radius | ≤ 1800 mm |
| Obstacle Clearance | ≥ 25 mm |
| Ditch Crossing Width | 100 mm |
| Maximum Speed | ≤ 4.5 km/h |
| Driving Range | Up to 15 km |
| Climbing Capacity | ≥ 3° |
| Slope Stay Capacity | 8° |
| Static Stability | ≥ 6° |
| Dynamic Stability | ≥ 3° |
| Brake Distance (Horizontal) | ≤ 1.0 m |
| Brake Distance on 3° Slope | ≤ 1.6 m |
| Seat Angle | 4° (Ergonomic) |
| Backrest Angle | 12° |
| Footrest Angle | 100° |
| Motor | 2 × 150 W Brushless Motors with Electromagnetic Brake |
| Battery | 24 V 10 Ah Lithium Battery |
| Net Weight | 13.7 kg |
| Key Part Weight | 11.5 kg |
| Maximum Load Capacity | 136 kg |
